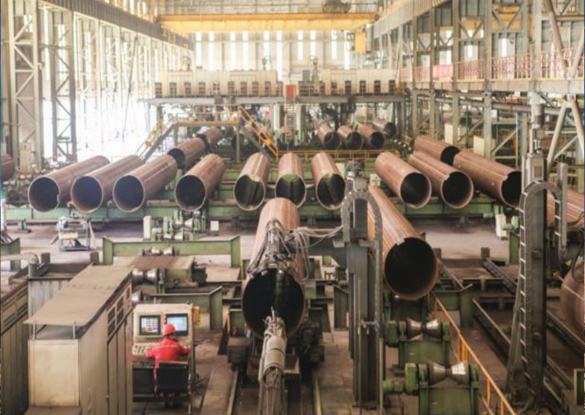

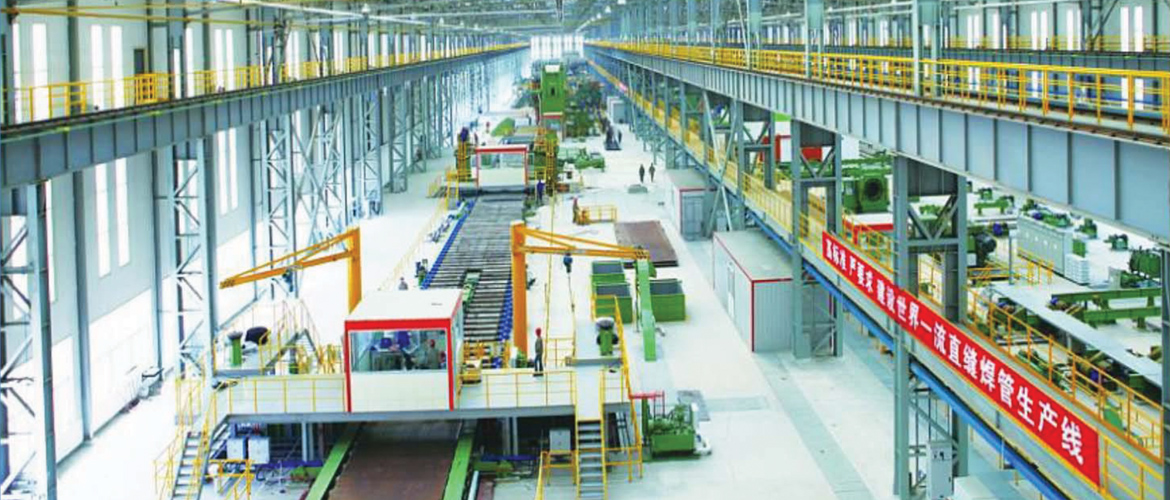

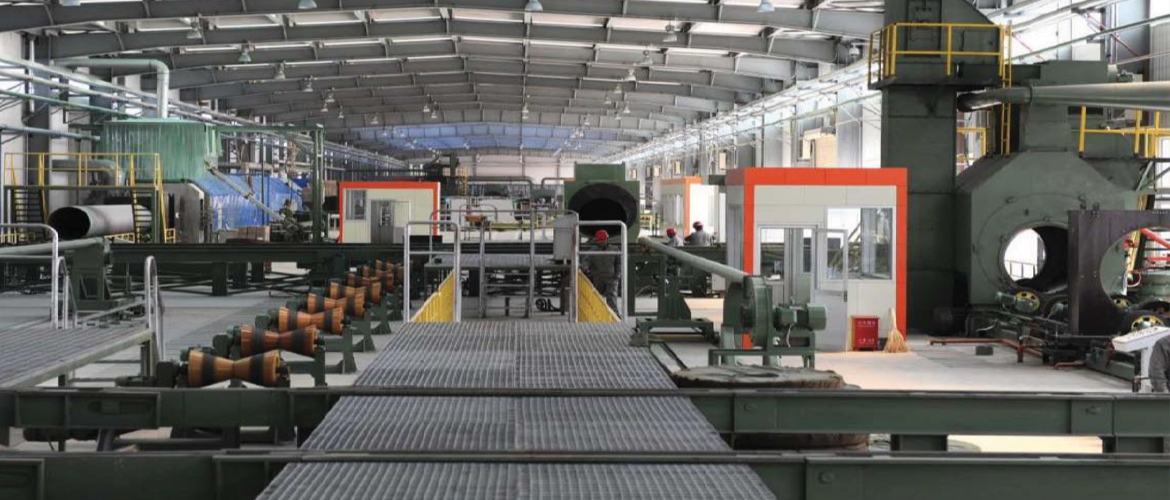

Our workshop of 30m bay and a total area of 31,140 m2, The LSAW pipe Plant adopts the most up-to-date JCOE technology, of which, the forming press is engineered and fabricated by SMS-MEER from Germany, the welding equipments is designed by U&S Germany and the UT inspection device is developed and made in Germany.

We are specialized in manufacturing the large diameter submerged arc welding pipes with high strength and high quality for oil and gas fluid transmission and transportation. The largest pipe diameter could reach upto 1,422mm, the max wall thickness is 40mm and the max grade is X100 with applied specifications of Steel Pipe for the Transportation of Petroleum and Gas: API 5L, ISO3183, GB/T9711 and meeting International Standards for the Pipeline Q/SY GJX 0104-2007 and pipes for other applications of ASTM A53 ASTM A500 JIS G 3444.

Plant Area:	with a workshop of 30m bay and total area of 31,140 m2.
Production Line:	JCOE forming LSAW Pipe Production line
Production Capacity:
Diameter ranges:	508 mm to 1422 mm
Length ranges:	8000 mm to 12200 mm
Wall thickness ranges:	6.4 to 40 mm
Steel grade:	X42 to X100
Annual Production capacity:	over 400,000 MT.

Our workshop of 30m bay and a total area of 31,140 m2, The LSAW pipe Plant adopts the most up-to-date JCOE technology, of which, the forming press is engineered and fabricated by SMS-MEER from Germany, the welding equipments is designed by U&S Germany and the UT inspection device is developed and made in Germany.

We are specialized in manufacturing the large diameter submerged arc welding pipes with high strength and high quality for oil and gas fluid transmission and transportation. The largest pipe diameter could reach upto 1,422mm, the max wall thickness is 40mm and the max grade is X100 with applied specifications of Steel Pipe for the Transportation of Petroleum and Gas: API 5L, ISO3183, GB/T9711 and meeting International Standards for the Pipeline Q/SY GJX 0104-2007 and pipes for other applications of ASTM A53 ASTM A500 JIS G 3444.

Plant Area:	with a workshop of 30m bay and total area of 28,500 m2.
Production Line:	JCOE forming LSAW Pipe Production line
Production Capacity:
Diameter ranges:	355 mm to 1422 mm
Length ranges:	9000 mm to 18300 mm
Wall thickness ranges:	6.4 to 58.8 mm
Steel grade:	A to X100
Annual Production capacity:	over 400,000 MT.

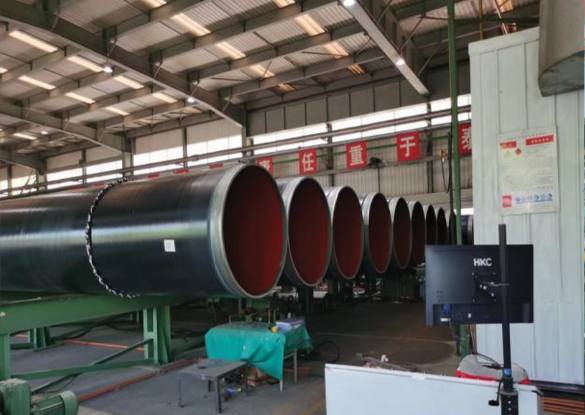

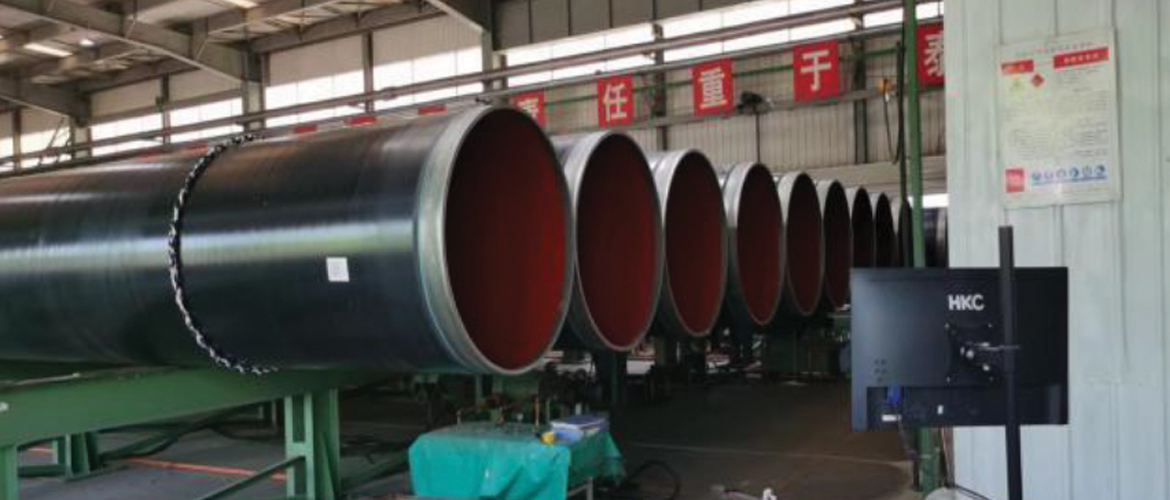

we are possessing two sets of technologically advanced internal and external coating production lines, which come with a fully equipped coating laboratory with comprehensive inspection programs.

The external coating line is able to carry out 3PE, 3PP, single layer coating, double layer coating, 2PE and other various anti-corrosive coating activities on pipes ranges from 323.9 to 1626 mm in diameter, and 8 to 18.5 m in length. The internal coating line can carry out internal anti corrosive coating and anti-resistant coating activities on pipes ranges from 508 to 1626 mm in diameter, and 8 to 18.5 m in length. The total annual production capacity of these two coating facilities are more than 3.6 million m2.

Production Line:	External coating application lines and internal coating lines
For external coating line:
Diameter ranges:	323.9 mm to 1626 mm
Length ranges:	8000 mm to 18500 mm
Annual Production capacity:	over 400,000 MT.
For internal coating line:
Diameter ranges:	508 mm to 1626 mm
Length ranges:	8000 mm to 18500 mm
Annual Production capacity:	over 3,000,000 M2

LIST OF LSAW PRODUCTION & INSPECTION FACILITIES

Sn.	Name	Main technical parameter	Using Status
1	Edge milling machine	SMS MEER, Germany Cutting speed ---150-400m/min	Good
2	Crimping press machine	Taiyuan, China Active length of lower/upper die---2300/3000mm Plate stepping length---2300mm	Good
3	Forming press machin	SMS MEER, Germany Crimping cutter synchronic precision ---+/-0.5mm Active length of crimping ---1300mm Max. Wall thickness of steel plate---40mm	Good
4	Tack welding (GMAW)equipment	SMS MEER, Germany One track system	Good
5	SAW machine for inside/out side weldi	SMS MEER, Germany Max. wall thickness of steel plate---40mm Steel Grade ---X100	Good
6	Grinder machine for weld seam	SAMHIDE, China Max. grinding length of inside/outside weld seam---300mm Height of weld seam after grinding ---0~0.5mm Range of size of weld seam--- height 0.5~4.8mm. width 15-30mm	Good
7	Expander machin	Tianshui, China Max. constant expanding rate---0.5%~1.5% Max. diameter of pipe:1422 mm Wall thickness of pipe: 6.4-40 mm	Good

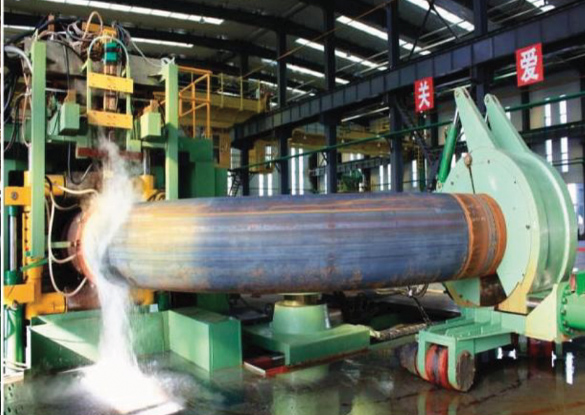

8	Hydrostatic test machine	Taiyuan, China Test pressure---30~500 Bar Pressure holding time---5~30S Device capacity--- 150 thousand tons/ye	Good
9	Plant-end chamfering machine	Dongji, China Pipe diameter---200~20000kg Length---8000~13000m	Good

MAIN TESTING & INSPECTION FACILITIES FOR LSAW PIPE MAKING

Sn.	Name	Main technical parameter	Using Status	Remarks
1	X-Ray Imaging Machin	Input voltage: 230VAC±10% 50/60Hz Output voltage: 15-320KV Cathode output current: 0-22.5mA Inspecting speed: 3-8m/min System sensitivity: static imaging 1.3-1.6% Dynamic sensitivity superior to 2.8% Spatial resolution: 20-30Lp/cm	Good	Online
2	X-Ray Imaging Machine	Max. Tube voltage: 225kv; Inspecting speed: 3-8m/min; System sensitivity: static imaging ＞1.6% Dynamic sensitivity superior to 4% Spatial resolution: ＞30Lp/cm..	Good	Online
3	Automatic NDT equipmen	Frequency band: 0.5 ~15 MHz; horizontal linearity: ≤1%; Vertical linearity: ≤5%; Resolution：≥32dB; Dynamic scope：≥30dB; Detection sensitivity remnant: ≥52dB; Attenuation: 110dB，accuracy: 1dB; Detection sensitivity：Meet the requirements of API Spec 5L; Flaw missing rate: 0	Good	Online
4	MS-32 Pipe Body Automatic Flaw Detector	Flaw detection speed: 3-12m/min Pipe end blind area: ≤100mm Supporter tracking range: ≥±50mm Tracking accuracy: ≤±1.5m	Good	Online
5	KD Pipe Body Automatic Flaw Detector	Detecting speed: 0.5-1m/s Tracking range: ±15° Tracking accuracy: ±1mm Rate of missing report: 0%	Good	Online
6	MS-64 Plate Automatic Flaw Detecto	Range of probe location and covering: both plate edges ranging within 50mm, 100% covered scanning; coverage of plate body is no less than 25%; Scanning ways: plate edges comb-like scanning, plate body flaw detection probe swinging scanning; Probes spacing: 0-100mm Flaw detection speed: 3-12m/min; Flaw detection blind area: plate ends ≤50mm; Both plate edges ≤5mm; upper surface and under surface of plate ≤1.5m	Good	Online
7	Weighing and length measurement facilit	Hongshun, China Weighing range---200~20000kg Length range---8~12.8mm	Good	Online
8	Charpy impact test machine	6-600J,Low temperature apparatus(-86~20℃)	Good	Offline
9	DWTT Machine	20000-50000J, Low temperature apparatus(-86~20℃)	Good	Offline
10	Spectroscopic analysis instrumen	Analyze 20 elements	Good	Offline
11	Tensile impact test machin	300 tons and 100 ton	Good	Offline
12	Hardness meter	HV,05~10kg	Good	Offline
13	Metallographic inspection instrumen	Magnification 50X~1000X	Good	Offline
14	Bend test facility	Ram, Diameter:20~240mm	Good	Offline
15	Direct Reading Spectrometer	PDA 7000	Good	Offline

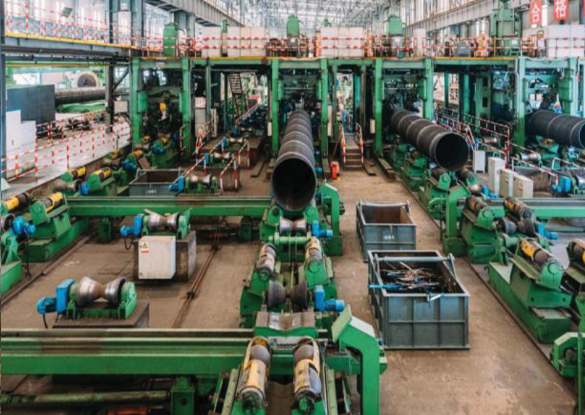

LIST OF HSAW PRODUCTION & INSPECTION FACILITIES

Sn.	Name	Main technical parameter	Using Status
1	Uncoiling machine	Taiyuan, China, Coil ID-610~762mm Coil OD-1200~2200mm Coiling Speed 9m/mi	Good
2	Seven-roller straightening machi	Taiyuan ,China, Speed 1.5~18m/min Roller force 1300t	Good
3	Cut and butt joint weld machine	Taiyuan China, Welding speed 0.5~2.5m/min	Good
4	Edge milling machin	Xintong, China, Thickness--6.4~20.6mm(X80); 6.4~25.4mm(X70) Width—1000~2000mm Milling width—max.20mm	Good
5	Forming machin	Taiyuan, China, Length of forming pipe---8~18.3mm Pipe diameter---508~1626mm	Good
6	Tack welding machin	Harbin, China Welding speed---0.8~12m Welding process---GMAW	Good
7	HSAW machine	1 HSAW machine: W+K ,Germany; 2 HSAW machines Yayan, China Pipe diameter—508-1626mm Pipe length---8~18.3 Thickness---6.4~25.4mm	Good
8	internal/external welding seam grind	Sanmo, China Max. grinding length ---300mm	Good
9	Expanding machine	Tianshui, China Pipe diameter---508~1626mm Max expanding rate---1.5%	Good
10	Hydraulic test machine	Sanming, China Test pressure---30~500bar Pressure holding time---5~30s	Good
11	Facing and Chamfering machin	Dingji, China Pipe diameter--- 508-1626 Pipe length---8000~18300mm	Good

MAIN PRODUCTION EQUIPMENT FOR EXTERNAL COATING

Sn.	Items	Model
1	1# Medium Frequency Preheating Oven	KGPS500
2	1# Blasting Cleaner	WQGW16/03BS
3	1# Internal Blowing Device	csΦ323-Φ1626
4	2# Medium Frequency Preheating Oven	kGPS500
5	2# Internal Blowing Device	csΦ323-Φ1626
6	1# Medium Frequency heating Oven	kGPS1500
7	FBE Spraying System	fbe2078
8	PE Extruder
9	AD Extruder	SJ90
10	Layer Cooling Device	lqΦ323-Φ1626
11	Pipe Ends Grinding Device	dmΦ323-Φ1626
12	3# Internal Blowing Device	WQNF05/16BS
13	Blowing device for internal coated pipe	csΦ323-Φ1626
14	High-Pressure Spaying Device	xtreme Mix44
15	Solvent Blowing Device	ccΦ323-Φ1626
16	Curing Oven	24×15m×2.8m
17	Marking Device of inner surface	npb
18	High pressure water cleaning device	sxΦ323-Φ1626

MAIN TESTING & INSPECTION FACILITIES FOR EXTERNAL COATING

Sn.	Device Name	Model	Using Status
1	Salinity Meter	Elcometer130 SCM400	Good
2	Peeling Strength Tester	MTT1000F	Good
3	Dew Point Meter	DICKSON TH3000	Good
4	Surface Roughness Tester	SJ-201	Good
5	Viscometer	Tu-4	Good
6	Infrared Thermometer	RAY ST20	Good
7	DC Holiday Tester	CK-6	Good
8	Layer Thickness Gauge	T456F12S	Good
9	Environmental Stress Crack Resistance Tester	NYK-60	Good
10	Continuous Stereoscopic Zoom Microscope （40X）	PXSVI-D	Good
11	Differential Scanner Calorimeter (DSC)	DSC1	Good
12	Universal Tester	XTZ-E	Good
13	Drop Hammer Tester	XJC-15	Good
14	Bending Tester	/	Good
15	Indentation Hardness Tester	/	Good

MAIN PRODUCTION EQUIPMENT FOR INTERNAL COATING

Sn.	Equipment	Type	Manufacturer	Condition
1	No.1 Blasting Machine	WQGW16/03BS	Jinan Wantong machinery compan	Good
2	Internal coating machin	Φ508-Φ162	Graco America	Good
3	Curing oven	20m×15m×2.8m	Beijing Zhongtai	Good

Partial Experience List

Sn.	Item(or purchaser)	Transportation medium	Grade	Pipe size	Weight
				（mm）	(Ton)
1	Oman pipeline project （Sour Service）	Gas	X65MS	813*12.5/14.2/17.5	22118
2	Moxi Dragon King Temple Project （Sour Service）	Gas	L360MS	610*18	37
3	Ningxia gas pipeline project （Sour Service）	Gas	A516 GR.60(HIC)	508-1067*9.53-37.7	2927
4	Ningxia gas pipeline project （Sour Service）	Gas	A516 GR.60(HIC)	508-1067*9.53-37.7	2912
5	Panjin Jiuxing （Sour Service）	Gas	L245NS	610*8.7	266
6	Petronas Project	Crude Oil	X70	914.4*13.06	16421
7	Sino-RussiaEast Line (Heihe Changling)Ⅲ	Gas	X80M	1422*25.7/30.8/33.8	30692
8	Ajaokuta Kaduna Kano Gas Pipeline Project	Gas	X70	1016*17.3/1021.8*20.2/1 029*23.8	150886
9	Lianyungang-Taixing Section of the Sino-RussiaEast Line	Gas	X80M	1219*18.4/22/27.5	94073
10	Acid Resistant Pipe Project for	Gas	L415QS	711*8.8	73.45
